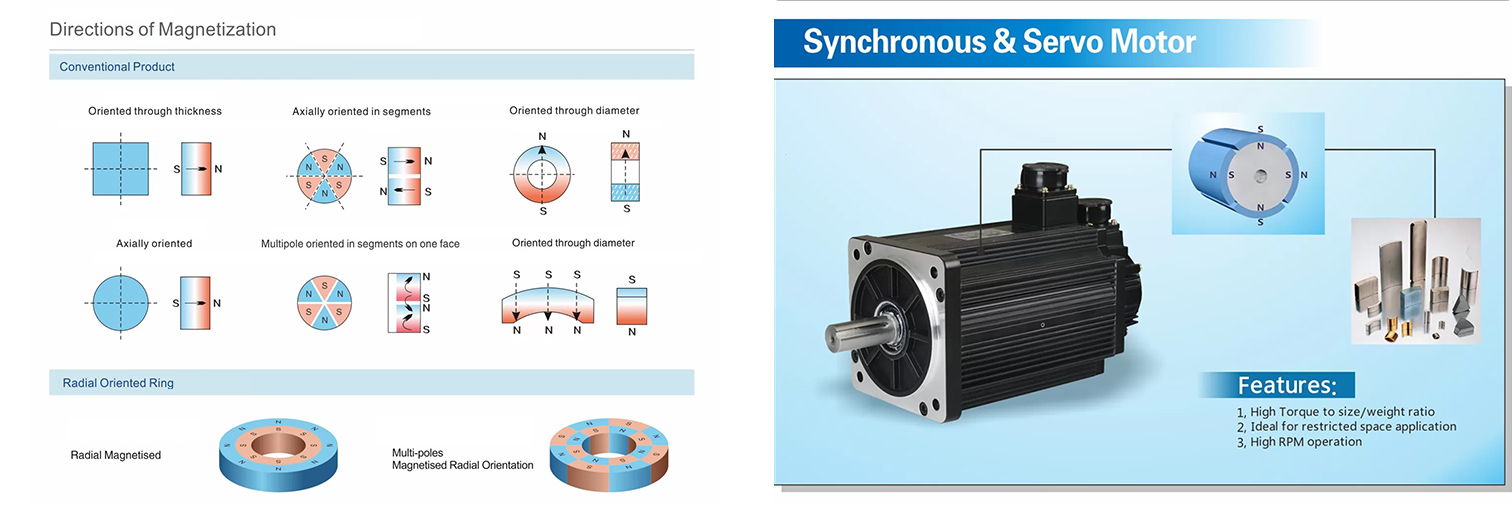

Stepper/Servo Motor Parts —— High-Performance Magnets

High-performance sintered NdFeB blocks, tiles and twisted tiles, bonded compression molded NdFeB ring magnets;

We have been offering products and services for stepper and servo motor makers for a long period of time, and accumulated abundant experience.

Homogeneity of products

Low weightlessness, excellent performance, can keep within 1mg/cm2；

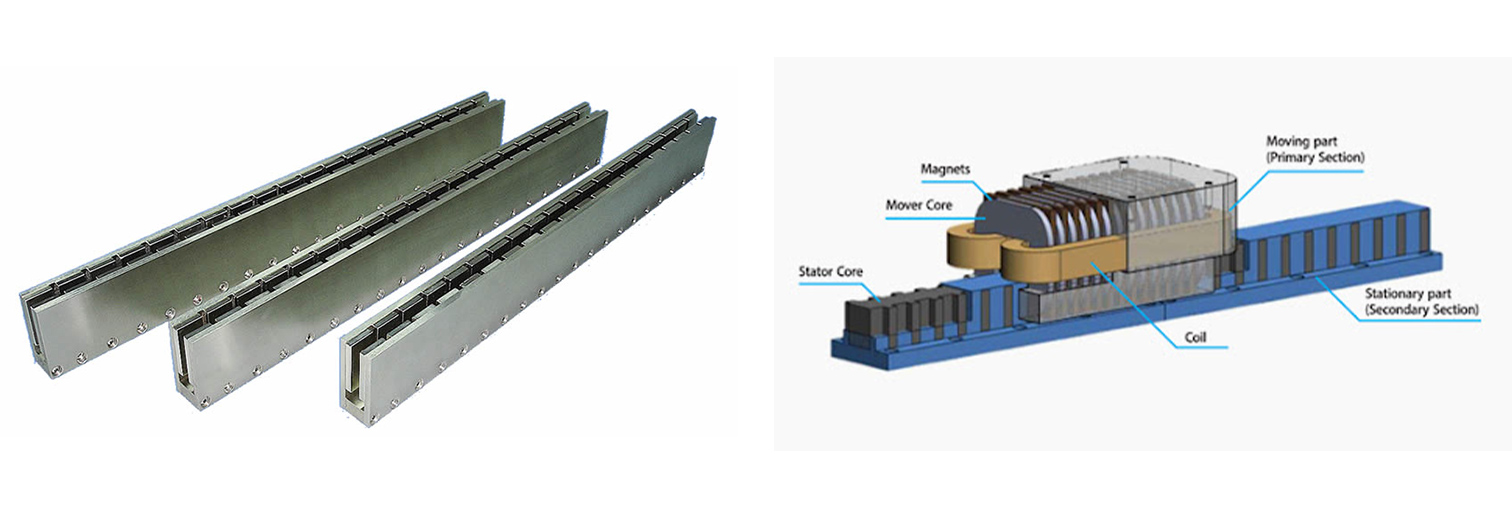

Linear Motor Parts——Magnet Track

Linear motor track is used instead of traditional secondary coil. It can maintain smooth movement and stable magnetic force even during the voltage fluctuation. It has many merits including simple structure, free from contact and wear, low noise, speediness, high precision, and flexible assembly.

The sizes of magnet tracks listed above are for existing products. Specific size can be customized according to client's requirement.

Application

NdFeB Magnet are widely used in Servo motor, Brushless motor, Linear Motor, Automotive Motor, HEV& EV motor, Robot Driving Motor, Inverter Compressor Motor , Traction Motor, wind turbine, Energy-saving Elevator, Loudspeaker, Magnetic switch, VCM, MRI, Magnetic separator, sensor etc.

Energy-saving, simplify design and miniaturization are the advantages of PM motor when compare to traditional motor.

The popular grades of NdFeB magnets used in industrial motor: 35SH, 38SH, 42SH, 28UH, 30UH, 33UH, 35UH, 38UH, 33EH, 35EH, 38EH, 38M, 42H, 48H etc.
