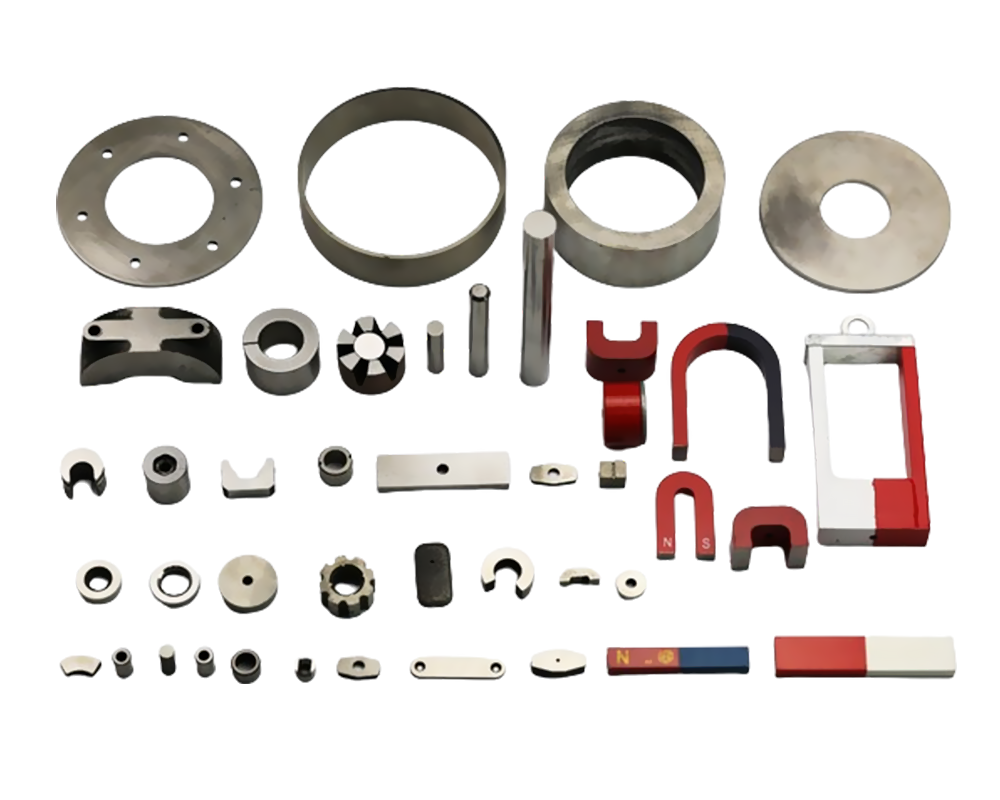

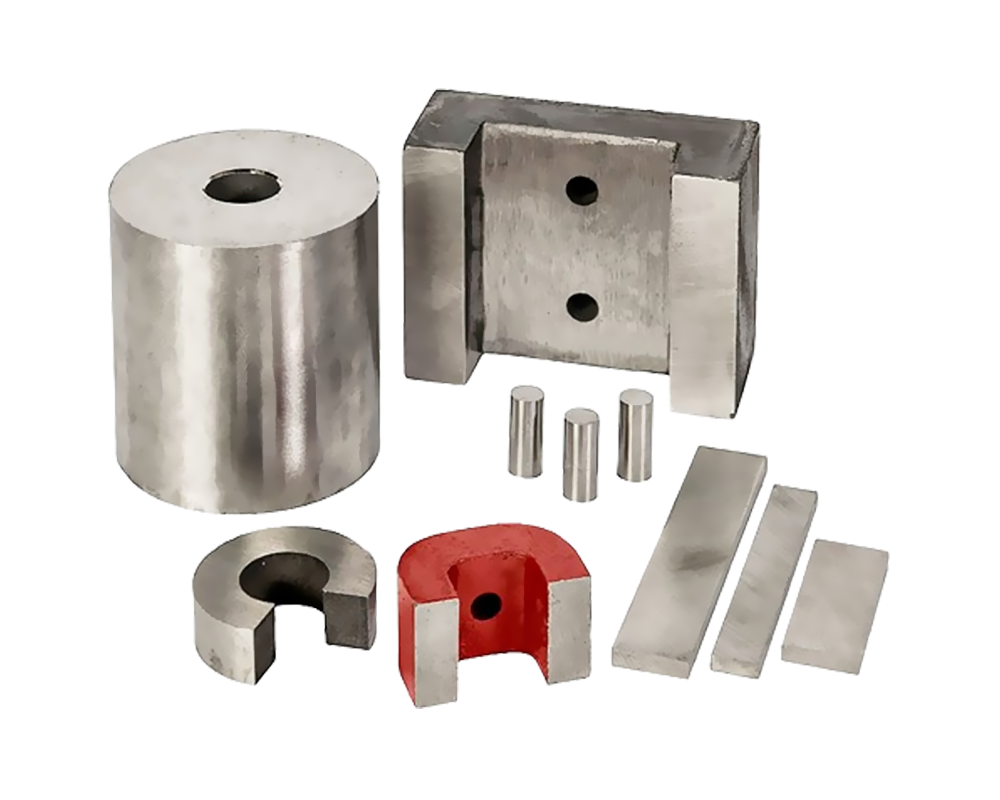

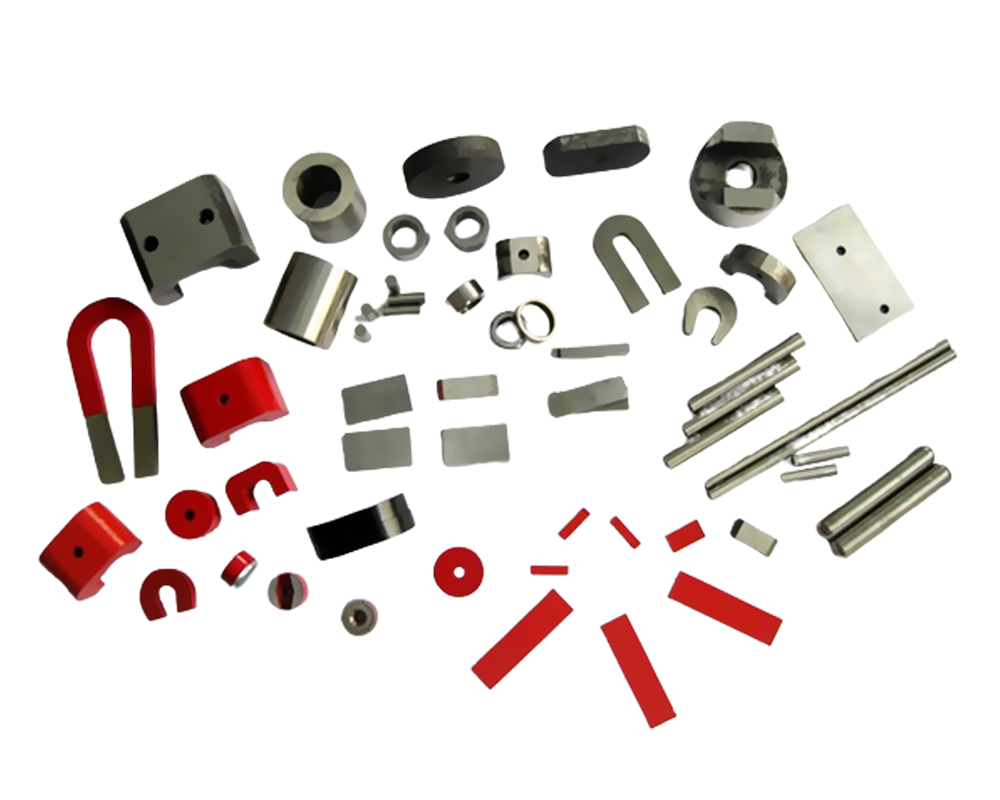

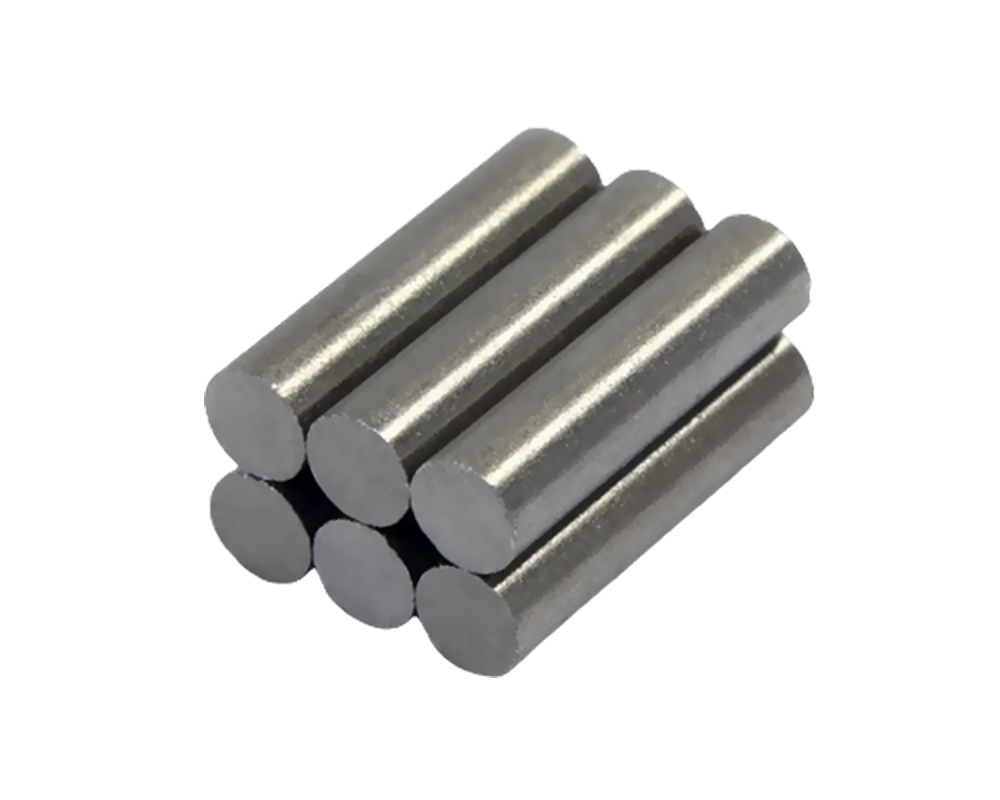

AlNiCo Magnet

We have strong sintered AINiCo permanent magnet production scale, can produce the performance of Alnico2-8 grades. And annual output nearly 800 tons, We have sintered and cast AINiCo.

All materials of sintering AINiCo are totally same with the casting AINiCo, which is produced by the method of powder metallurgy.

Get A Quote

Online customer service
Factory guarantee
Ontime delivery

PRODUCTS

Alnico Magnet Certifications

Alnico Magnet Advantages

High performance product technology maturity,performance stability;
Full automatic equipment for the detection of magnetic flux for all products;

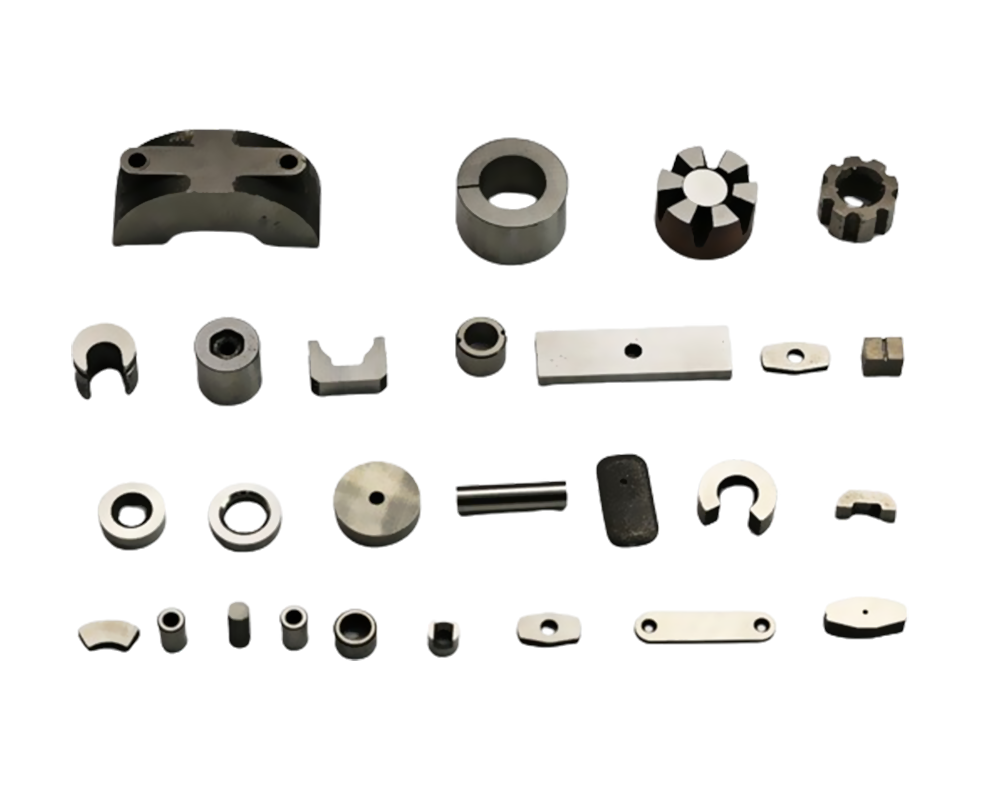

Can be stable production of thin-walled deep holes,special shaped,precision micro products,processingtechnology are stable;
Can produce all directional maximum magnetic energy AINiCo96 products;

Sintered AINiCo Application Field

Sintered AINiCO suit to produce complex switch, light, thin, small products, widely apply to instruments and apparatus, communications, magnetic switches and various sensors.

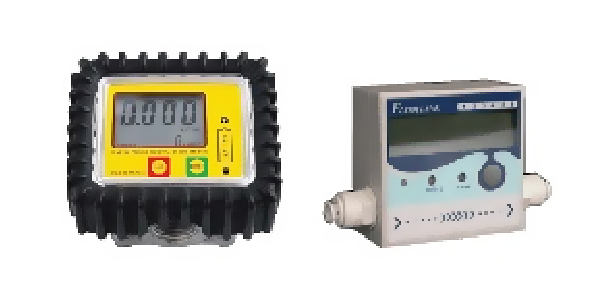

: Medical Equipment

: Industrial Equipment

Casting AINiCo Application Fields

Casting AINiCo magnet is mainly applied in auto parts,instruments and apparatus, electroacoustic, electrical machine, teaching and aerospace military field, etc..., it has low temperature coefficient, high temperature resistance,humidity-resistance, not easy to oxidize and good working stability characteristics and so on.

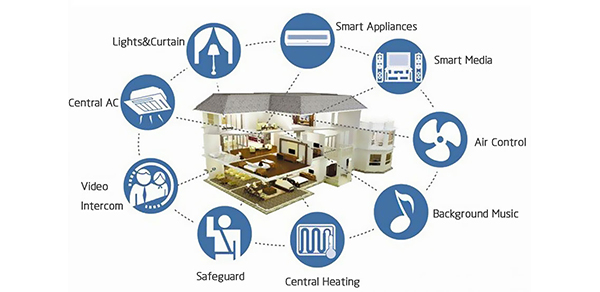

: Smart Home

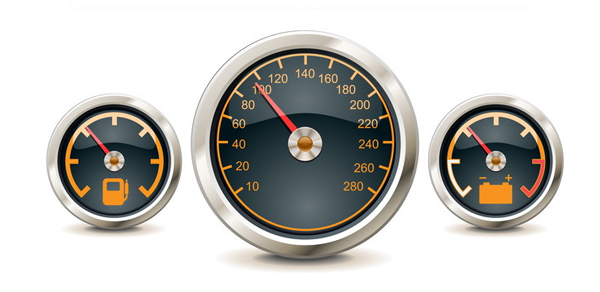

: Car Accessories

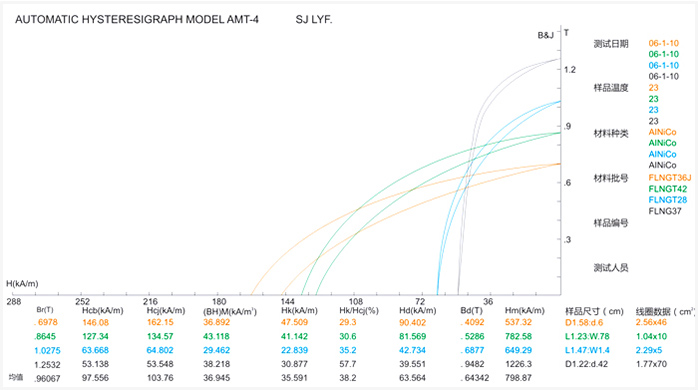

Sintered Alnico Curve

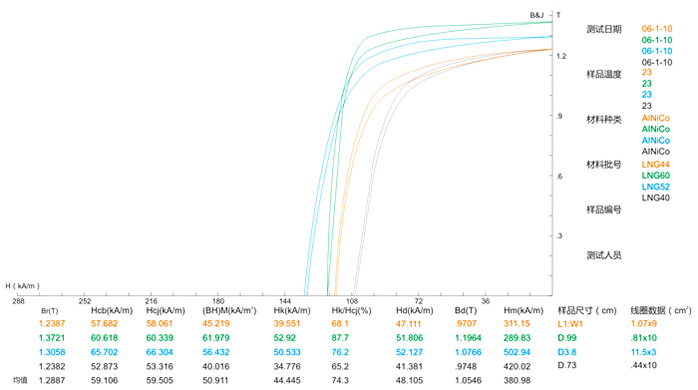

Cast Alnico Curve

Sintered Material properties

Grade	BR		Hcb		Hcj		BH(max)		Tc	αBr	Density	Remarks
Grade	mT	kGs	kA/m	kOe	kA/m	kOe	kJ/m3	MGOe	°C	%/°C	g/cm3	Remarks
SLN8	520	5.2	40	0.5	43	0.54	8~10	1.0~1.25	760	-0.022	6.8	Isotropic
SLNG12	700	7	40	0.5	43	0.54	12~14	1.5~1.75	810	-0.014	7
SLNGT14	570	5.7	76	0.95	78	0.98	14~16	1.75~2.0	850	-0.016	7.1
SLNGT18	560	5.6	88	1.1	90	1.13	18~22	2.25~2.75	850	-0.016	7.2
SLNG28	1050	10.5	46	0.58	47	0.59	28~33	3.5~4.15	850	-0.02	7.2	Anisotropic
SLNG34	1100	11	50	0.63	51	0.64	34~38	4.3~4.8	890	-0.02	7.2
SLNGT28	1000	10	56	0.7	57	0.71	28~30	3.5~3.8	850	-0.02	7.2
SLNGT31	780	7.8	104	1.3	106	1.13	33~36	3.9~4.5	850	-0.02	7.2
SLNG33J	650	6.5	136	1.7	150	1.88	31~36	4.15~4.5	850	-0.02	7.2
SLNGT38	800	8	123	1.55	126	1.58	38~42	4.75~5.3	850	-0.02	7.2
SLNGT42	880	8.8	120	1.5	122	1.53	42~48	5.3~6.0	850	-0.02	7.25

CastMaterial properties

Grade	Br		Hcb		(BH)max		Density	Tc	Tw	αBr	MMPA	IEC
Grade	mT	kGs	kA/m	kOe	kJ/m3	MGOe	g/cm3	°C	°C	%/°C	Equivalent	Equivalent
1.Isotropy
*CLN9	690	6.9	37	0.47	9	1.13	6.9	760	≦450	-0.03	Alnico3	Alnico 9/3
*CLN10	600	6	40	0.5	10	1.25	6.9	760	≦450	-0.03	Alnico3	Alnico 9/3
*CLNG12	720	7.2	45	0.6	12	1.35	7	810	≦450	-0.03	Alnico2	Alnico 12/6
*CLNG13	700	7	48	0.6	13	1.63	7	810	≦450	-0.03	Alnico2	Alnico 12/6
2.LNG Series
CLNG16	800	8	53	0.66	16	2	7.3	850	≦525	-0.02	[Alnico 4]	NA
CLNG28	1050	10.5	46	0.6	30	3.75	7.3	850	≦525	-0.02	[Alnico 4]	NA
CLNG32	1180	11.8	46	0.575	32	4	7.3	890	≦525	-0.02	[Alnico 5C]	NA
CLNG34	1180	11.8	46	0.575	34	4.25	7.3	890	≦525	-0.02	[Alnico 5C]	NA
CLNG37	1200	12	48	0.6	37	4.65	7.3	890	≦525	-0.02	Alnico 5	Alnico 37/5
CLNG40	1250	12.5	48	0.6	40	5	7.3	890	≦525	-0.02	Alnico 5	NA
CLNG44	1250	12.5	52	0.65	44	5.5	7.3	890	≦525	-0.02	Alnico 5	Alnico 44/5
CLNG48	1250	12.5	52	0.65	48	6	7.3	890	≦525	-0.02	Alnico 5DG	Alnico 52/6
CLNG52	1300	13	56	0.7	52	6.5	7.3	890	≦525	-0.02	Alnico 5DG	Alnico 52/6
CLNG60	1350	13.5	56	0.7	60	7.5	7.3	890	≦525	-0.02	Alnico 5-7	NA
3.LNGT Series of High Performance
*CLNGT18	580	5.8	90	1.13	18	2.2	7.3	860	≦550	-0.03	Alnico 7	Alnico 17/9
CLNGT32	800	8	100	1.25	32	4	7.3	860	≦550	-0.03	Alnico 8	Alnico 38/11
CLNGT34	800	8	104	1.3	34	4.25	7.3	860	≦550	-0.03	Alnico 8	Alnico 38/11
CLNGT38	820	8.2	110	1.38	38	4.75	7.3	860	≦550	-0.03	Alnico 8	Alnico 38/11
CLNGT44	880	8.8	120	1.5	44	5.5	7.3	860	≦550	-0.03	Alnico 8	NA
CLNGT60	900	9	110	1.38	60	7.5	7.3	860	≦550	-0.03	Alnico 9	Alnico 60/11
CLNGT72	1050	10.5	112	1.41	72	9	7.3	860	≦550	-0.03	Alnico 9	NA
CLNGT82	1100	11	120	1.5	82	10.25	7.3	860	≦550	-0.03	Alnico 9	NA
CLNGT36J	700	7	140	1.75	36	4.5	7.3	860	≦550	-0.03	Alnico 8HC	Alnico 36/15
Remark:"Isotropic,others are anisotropic.
