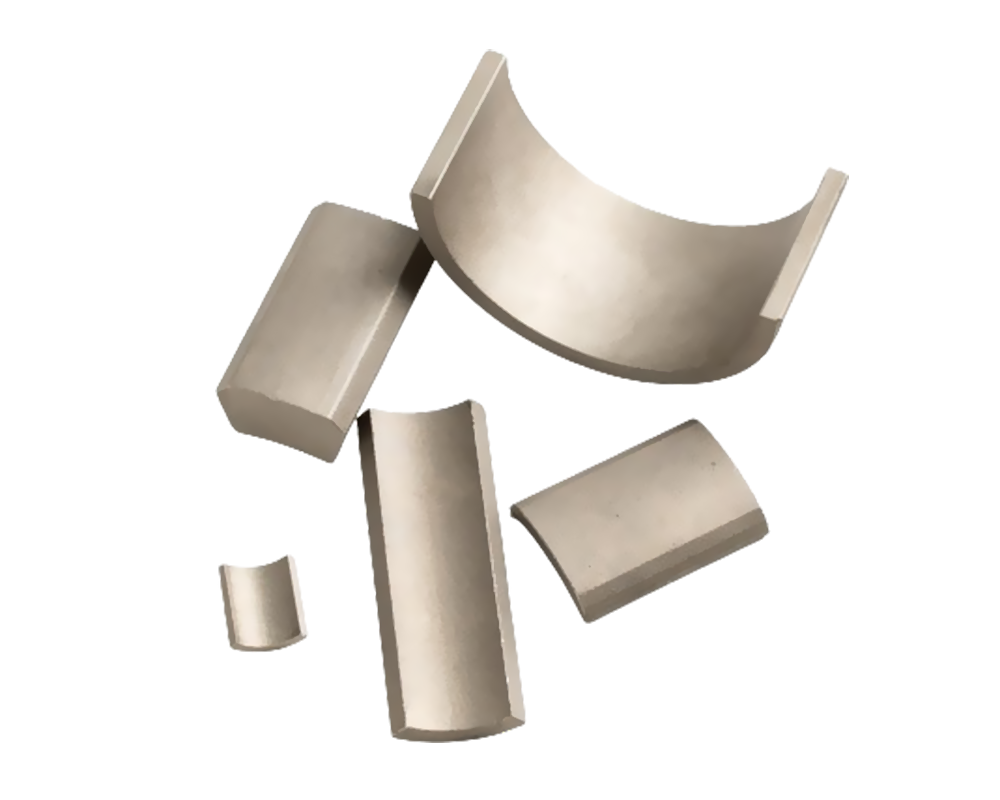

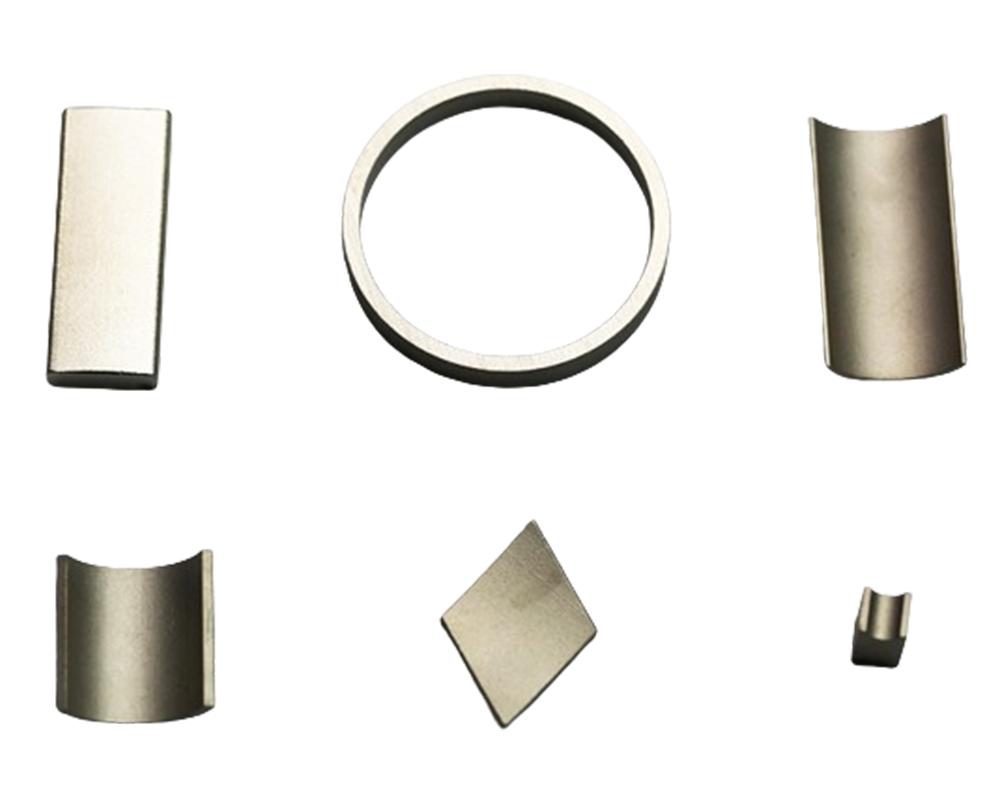

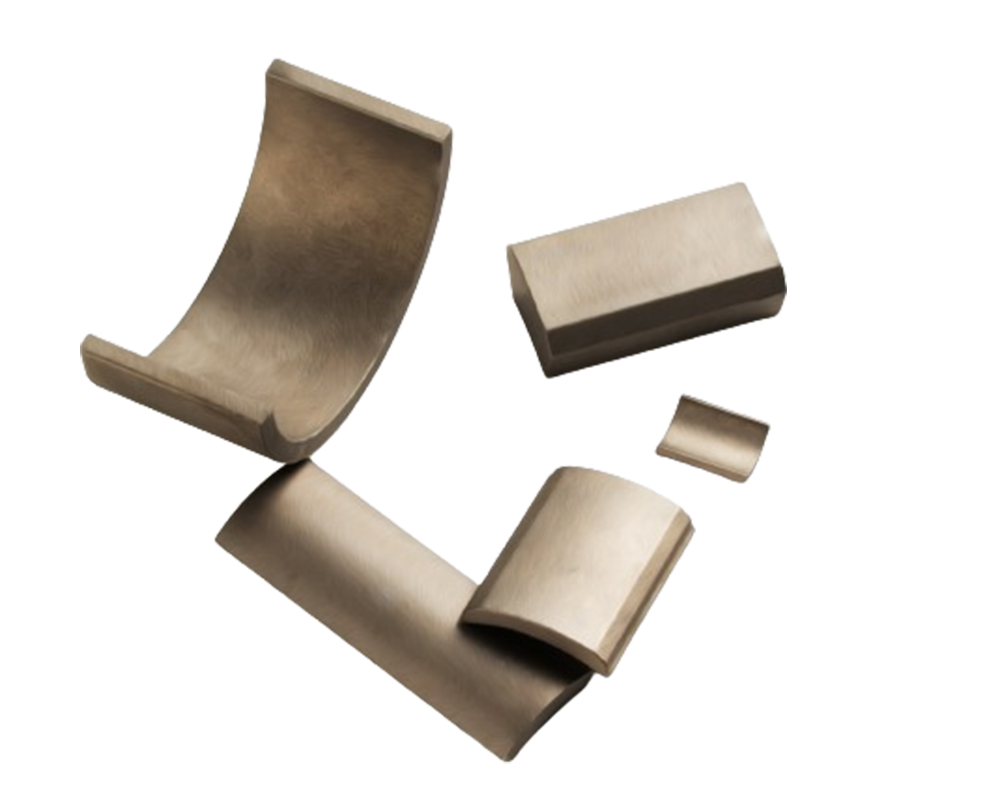

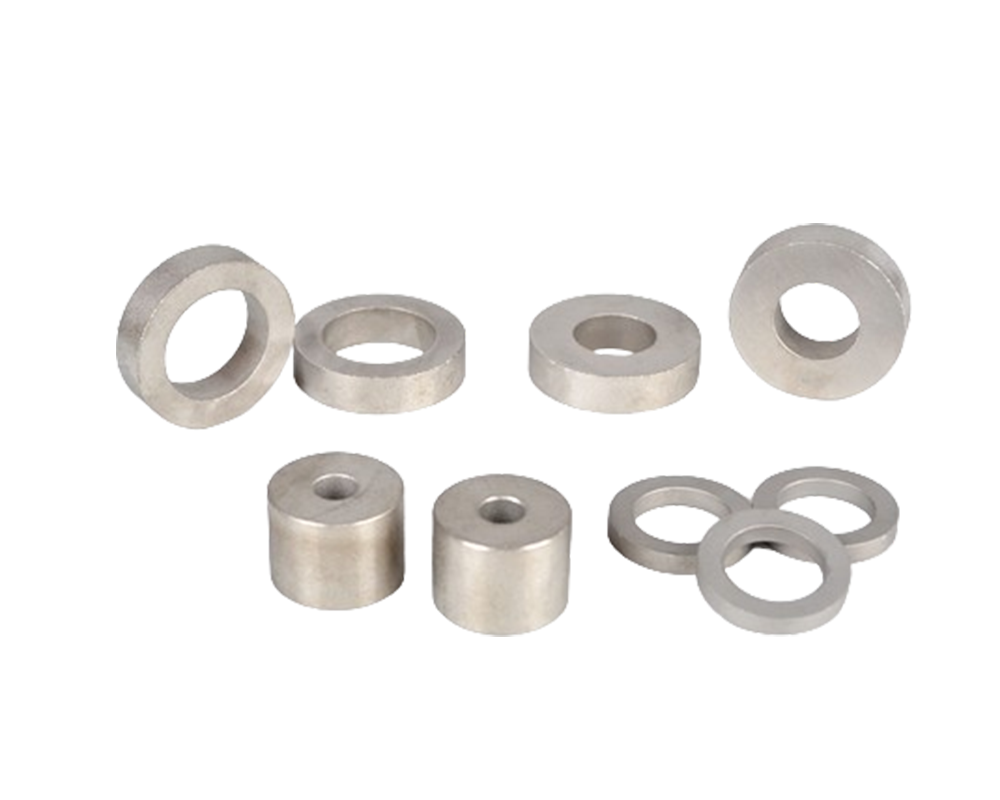

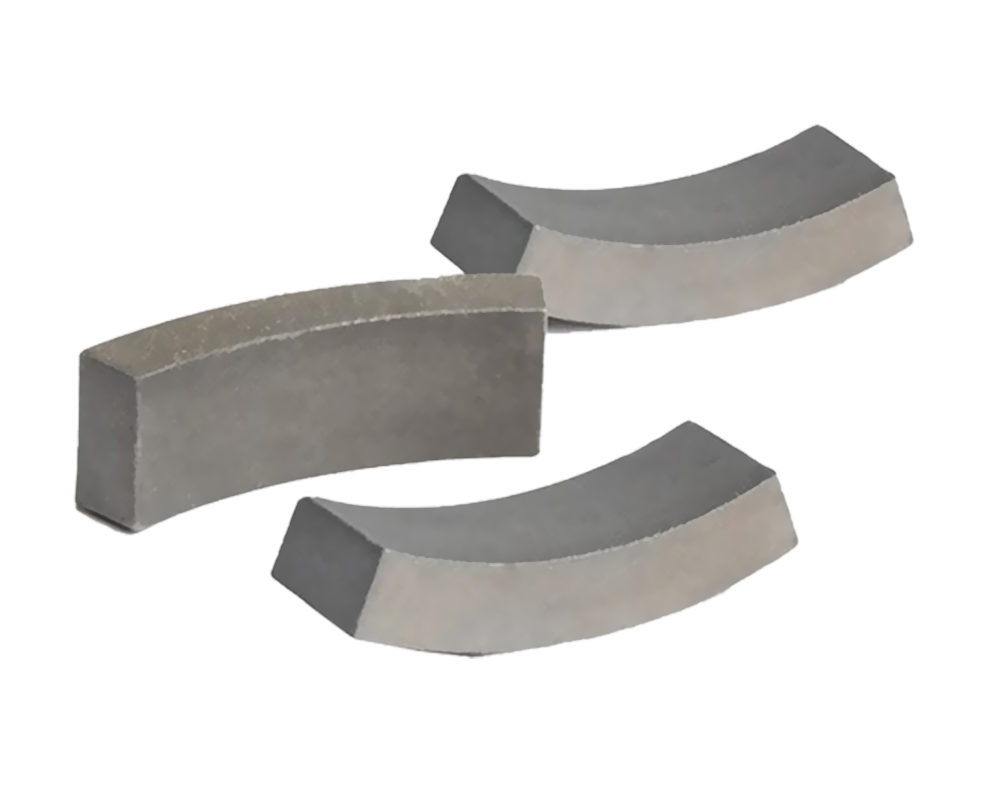

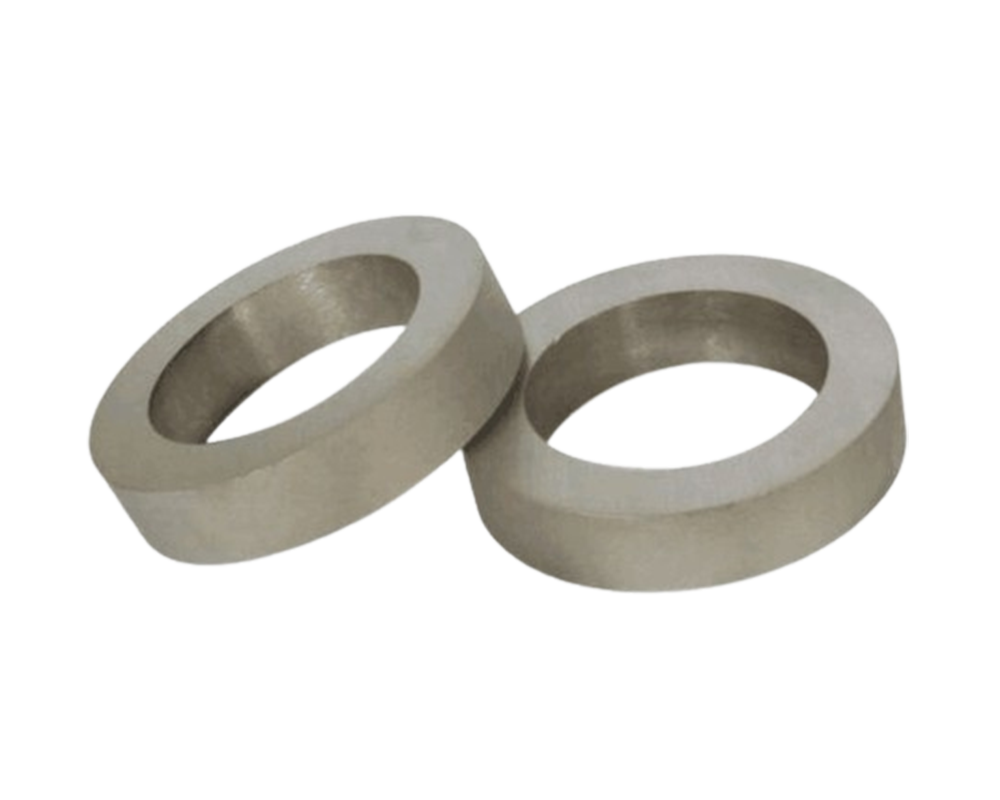

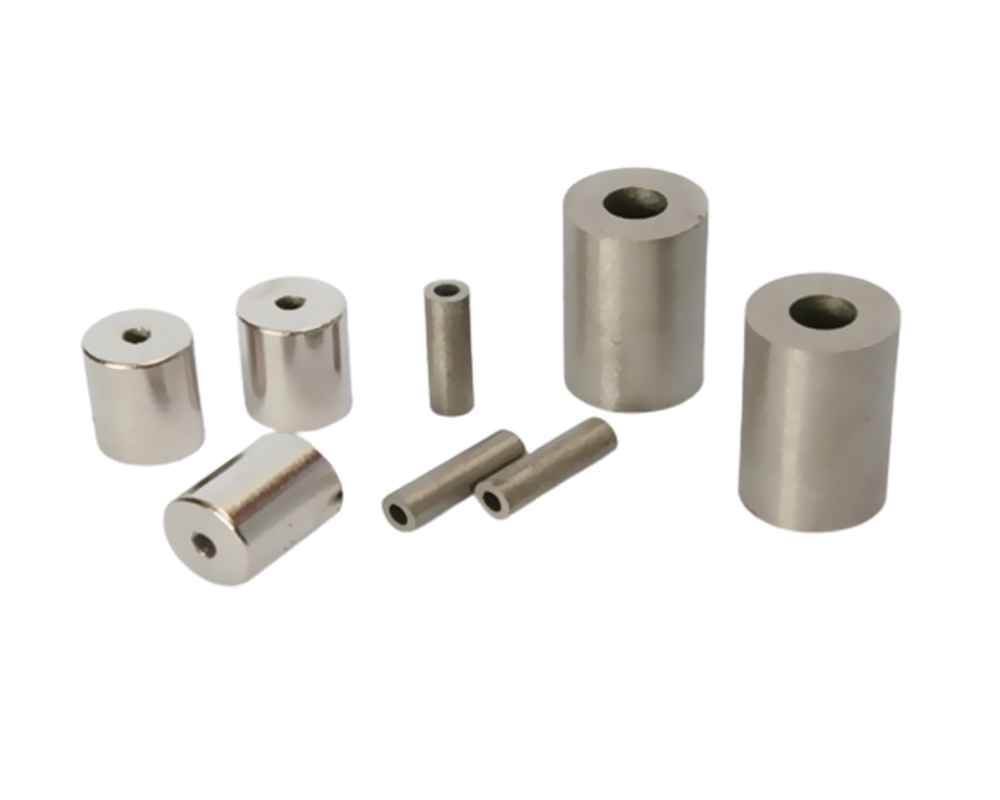

SmCo magnet

View large

SmCo magnets including SmCo5 and Sm2Co17 based on the different components.The physical character and ductibility of SmCo5 is better than Sm2Co17, so SmCo5 is slightly easier to be machined thin thickness disc or ring wall and complex shapes while Sm2Co17 is more brittle.

Sm2Co17 maximum working temperature 350C.Sm2Co17 bears a extremely low temperature coefficient and preferably anti-causticity. In high-temperature conditions, the magnetic properties is better than NdFeB magnets.

Get A Quote

Online customer service
Factory guarantee
Ontime delivery

PRODUCTS

SmCo Magnet Certifications

SmCo Magnet Advantages

We can make mass production for high grade YXG-32 with BH>=29MGOE consistently and stably as U.S and Japan standard
We can make big size product up to 120x120x100MM with full magnetization
We can produce SmCo magnets through axial with many poles
We can offer the magnets with deviation less than 2°between mechanical axis and magnetic axis.
We can produce big size magnet with very strict tolerance up to+/-0.01mm and the crack within 1x1x1MM

SmCo magnet Application Field

It needn't to be coated because it is difficult to be eroded and oxidzed. SmCo magnet is widely used in space probe,national defense and military,microwave appliance,communication,medical equipments,motors,instruments.

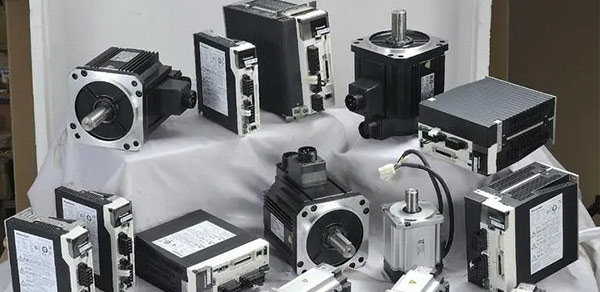

: Motor application

: Aviation application

: Military application

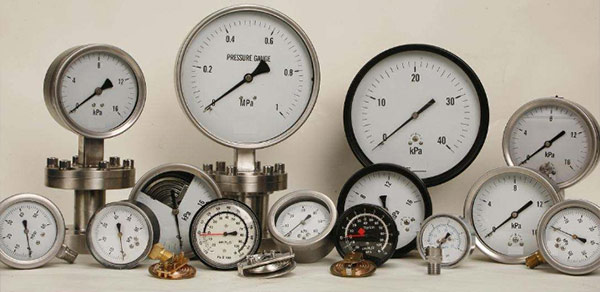

: Instrumentation application

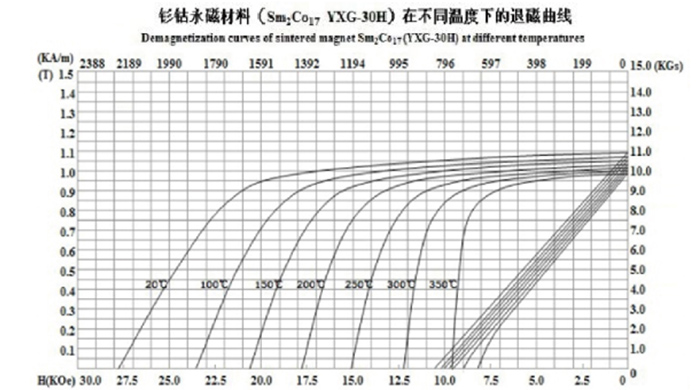

SmCo Magnet Demagnetization Curve

SmCo Magnet Performance Of Sintered Aluminum Nickel Cobalt

Material Type	Grade	BR		Hcb		Hcj		BH(max)		TEMP Coefficient	Curie TEMP	Max.Ope rating TEMP
Material Type	Grade	mT	kGs	kA/m	kOe	kA/m	kOe	kJ/m	MGOe	%/°C	°C	°C
SmCo5 (Smpr)co	YX-16	0.81-0.85	8.1-8.5	620-660	7.8-8.3	1194-1830	15-23	110-127	14-16	-0.05	750	250
	YX-18	0.85-0.90	8.5-9.0	660-700	8.3-8.8	1194-1830	15-23	127-143	16-18	-0.05	750	250
	YX-20	0.90-0.94	9.0-9.4	676-725	8.5-9.1	1194-1830	15-23	150-167	19-21	-0.05	750	250
	YX-22	0.92-0.96	9.2-9.6	710-748	8.9-9.4	1194-1830	15-23	160-175	20-22	-0.05	750	250
	YX-24	0.96-1.00	9.6-10.0	730-770	9.2-9.7	1194-1830	15-23	175-190	22-24	-0.05	750	250
SmCo5	YX-16S	0.79-0.84	7.9-8.4	612-560	7.7-8.3	≧1830	≧23	118-135	15-17	-0.035	750	250
	YX-18S	0.84-0.89	8.4-8.9	644-692	8.1-8.7	≧1830	≧23	135-151	17-19	-0.04	750	250
	YX-20S	0.89-0.93	8.9-9.3	684-732	8.6-9.2	≧1830	≧23	150-167	19-21	-0.045	750	250
	YX-22S	0.92-0.96	9.2-9.6	710-756	8.9-9.5	≧1830	≧23	157-183	21-23	-0.045	750	250
	YX-24S	0.96-1.00	9.6-10.0	740-788	9.3-9.9	≧1830	≧23	183-199	23-25	-0.045	750	250
	LTc(YX-10)	0.62-0.66	6.2-6.6	485-517	6.1-6.5	≧1830	≧23	75-88	9.5-11	(+0.0007%-0.0156%)	750	20-300
ce(co Fecu)5	YX-12	0.7-0.74	7.0-7.4	358-390	4.5-4.9	358-478	4.5-6	80-103	10-13		450	200
2:17 Sm:(CoFe cuzr)17	YXG-24H	0.95-1.02	9.5-10.2	692-764	8.7-9.6	≧1990	≧25	175-191	22-24	-0.025	800	350
	YXG-26H	1.02-1.05	10.2-10.5	748-796	9.4-10.0	≧1990	≧25	191-207	24-26	-0.03	800	350
	YXG-28H	1.03-1.08	10.3-10.8	756-812	9.5-10.2	≧1990	≧25	207-220	26-28	-0.035	800	350
	YXG-30H	1.08-1.10	10.8-11.0	788-835	9.5-10.5	≧1990	≧25	220-240	28-30	-0.035	800	350
	YXG-32H	1.10-1.13	11.0-11.3	812-860	10.2-10.8	≧1990	≧25	230-255	29-32	-0.035	800	350
	YXG-22	0.93-0.97	9.3-9.7	676-740	8.5-9.3	≧1433	≧18	160-183	20-23	-0.02	800	300
	YXG-24	0.95-1.02	9.5-10.2	592-764	8.7-9.6	≧1433	≧18	175-191	22-24	-0.025	800	300
	YXG-26	1.02-1.05	10.2-10.5	748-796	9.4-10.0	≧1433	≧18	191-207	24-26	-0.03	800	300
	YXG-28	1.03-1.08	10.3-10.8	756-812	9.5-10.2	≧1433	≧18	207-220	26-28	-0.035	800	300
	YXG-30	1.08-1.10	10.8-11.0	788-835	9.9-10.5	≧1433	≧18	220-240	28-30	-0.035	800	300
	YXG-32	1.10-1.13	11.0-11.3	812-860	10.2-10.8	≧1433	≧18	230-255	29-32	-0.035	800	300
	YXG-26M	1.02-1.05	10.2-10.5	676-780	8.5-9.8	955-1433	12-18	191-207	24-26	-0.035	800	300
	YXG-25M	1.03-1.08	10.3-10.8	676-780	8.5-10.0	955-1433	12-18	207-220	26-28	-0.035	800	300
	YXG-30M	1.08-1.10	10.8-11.0	676-835	8.5-10.5	955-1433	12-18	220-240	28-30	-0.035	800	300
	YXG-32M	1.10-1.13	11.0-11.3	676-852	8.5-10.7	955-1433	12-18	230-255	29-32	-0.035	800	300
	YXG-24L	0.95-1.02	9.5-10.2	541-716	6.8-9.0	636-955	8-12	175-191	22-24	-0.035	800	250
	YXG-26L	1.02-1.05	10.2-10.5	541-748	6.8-9.4	636-955	8-12	191-207	24-26	-0.035	800	250
	YXG-28L	1.03-1.08	10.3-10.8	541-764	6.8-9.6	636-955	8-12	207-220	26-28	-0.035	800	250
	YXG-30L	1.08-1.15	10.8-11.5	541-796	6.8-10.0	636-955	8-12	220-240	28-30	-0.035	800	250
	YXG-32L	1.10-1.15	11.0-11.5	541-812	6.8-10.2	636-955	8-12	230-255	29-32	-0.035	800	250
2:17(SmEr)2(CoTM)17	LTC(YXG-22)	0.94-0.98	9.4-9.8	668-716	8.4-9.0	≧1433	≧18	167-183	21-23	(-0.008)-(+0.01)	840	-50-300
