View large

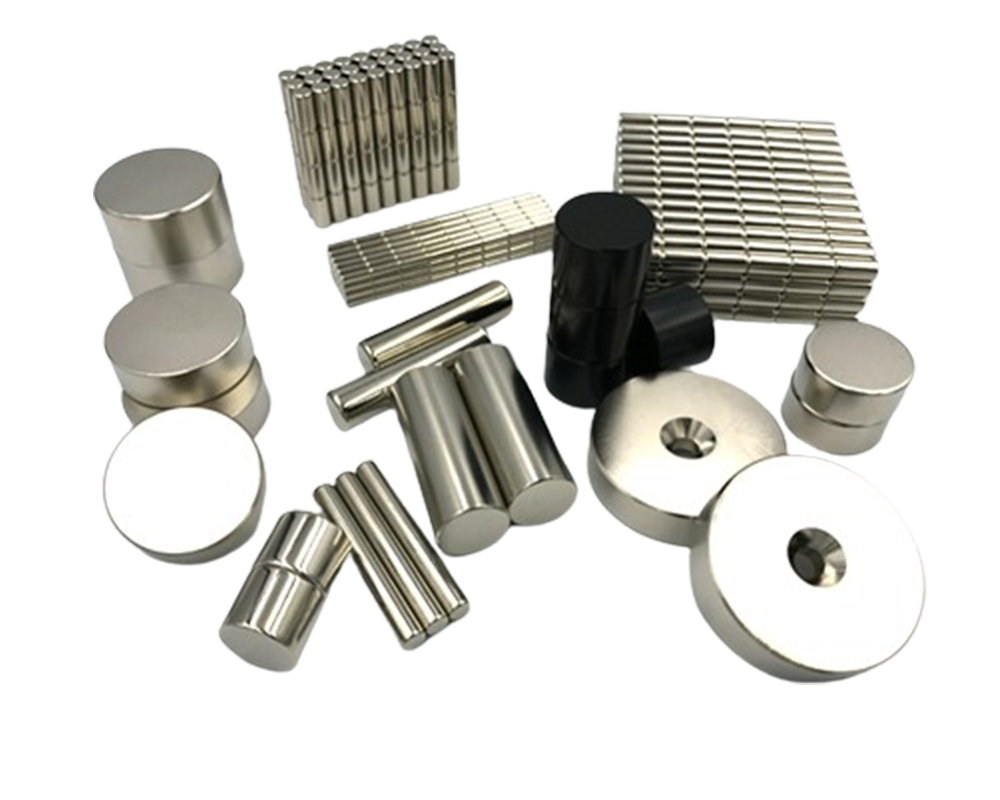

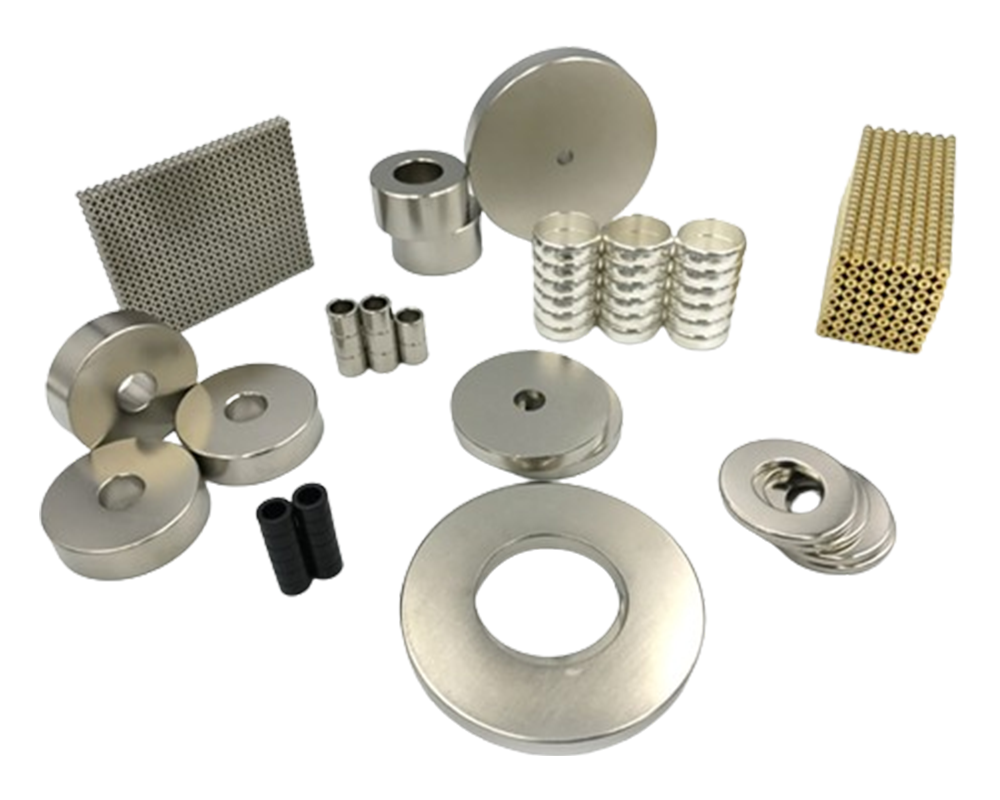

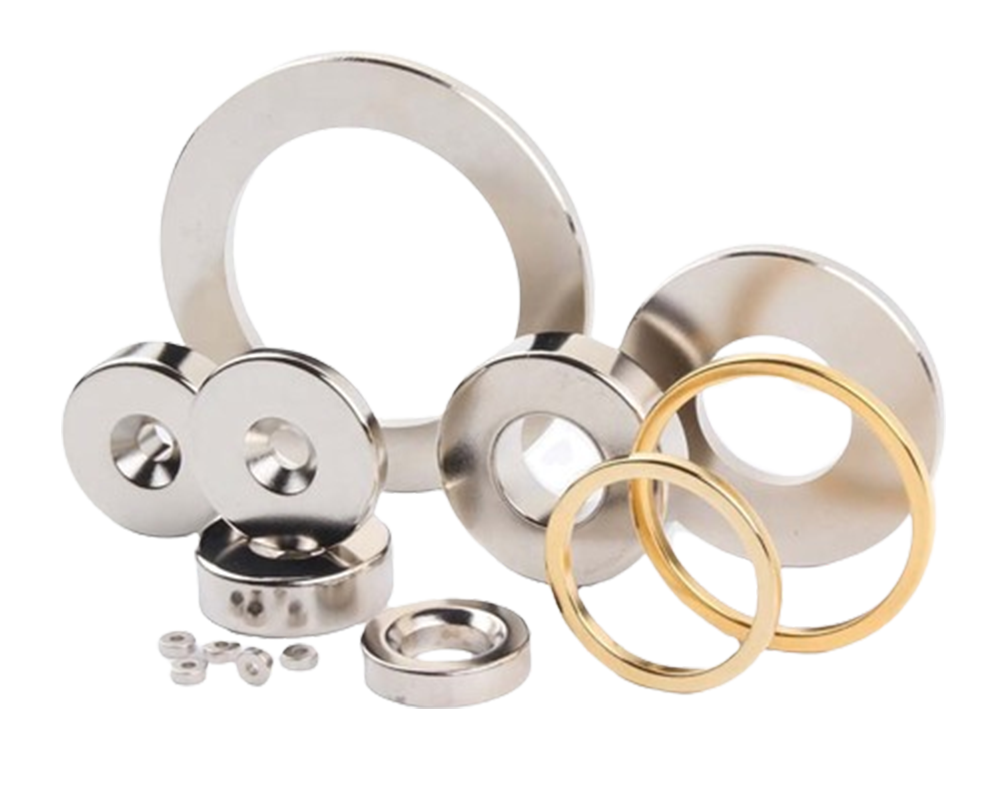

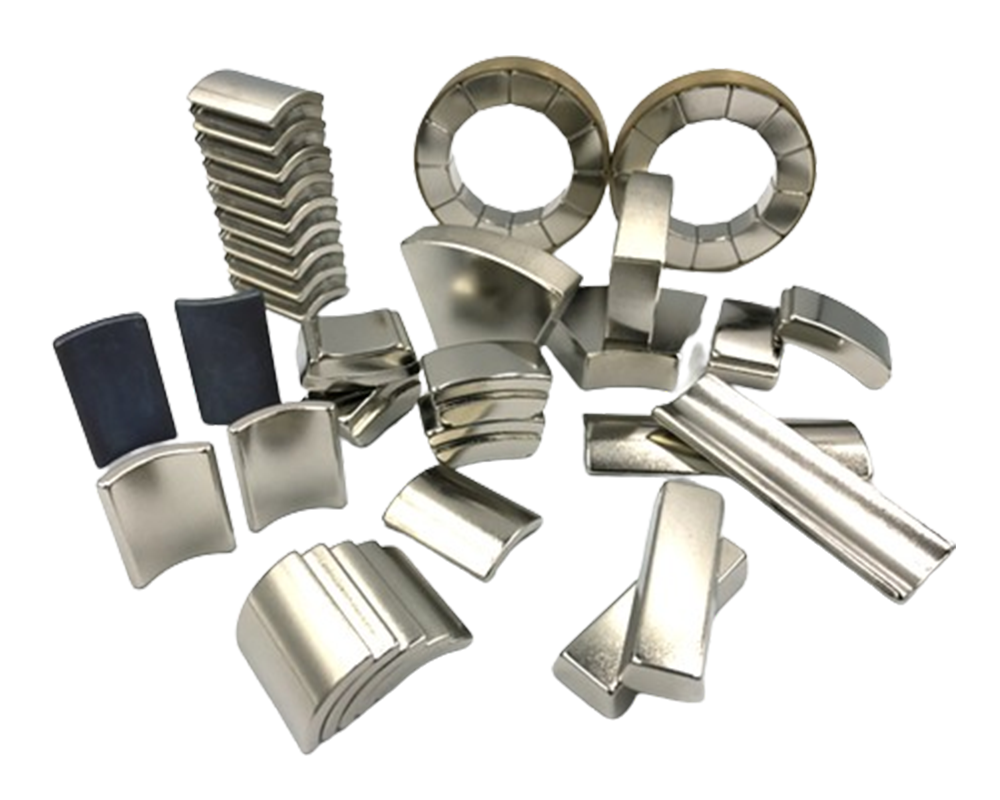

NdFeB Magnet
Sen Long Magnetic's NdFeB magnets are renowned for their superior performance at elevated temperatures, securing a competitive edge in the market with their industry-leading consistency and reliability.
Our diverse clientele and extensive application portfolio span across various sectors such as automotive, industrial motors, compressors, and generators, showcasing our commitment to excellence and innovation in magnet technology.
- Online customer service
- Factory guarantee
- Ontime delivery
PRODUCTS
NdFeB Magnet Certifications
NdFeB Magnet Advantages
- High Performance
- High Consistency
- High working temperature
- High Anti-Corrosion
NdFeB Magnet Application Fields
-

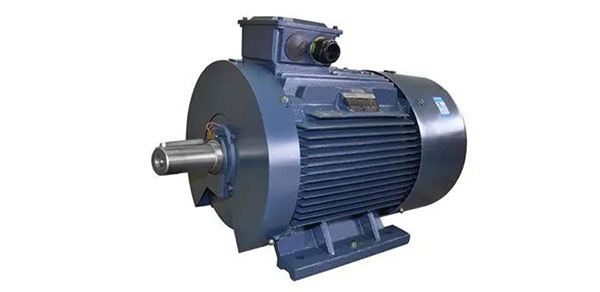

- Motor equipment
-

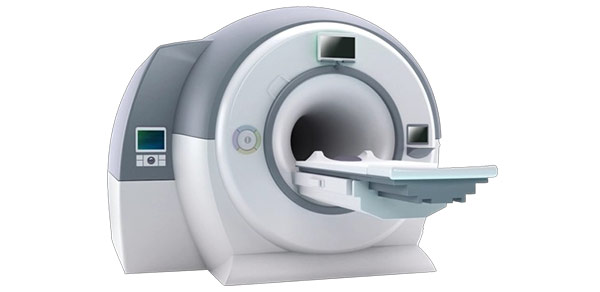

- Medical equipment
-

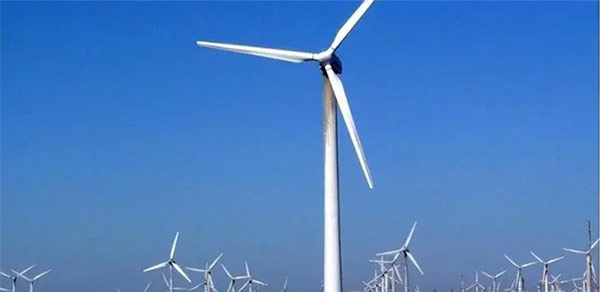

- Wind power equipment
NdFeB Magnet
Sen Long Magnetic's NdFeB magnets are renowned for their superior performance at elevated temperatures, securing a competitive edge in the market with their industry-leading consistency and reliability. Our diverse clientele and extensive application portfolio span across various sectors such as automotive, industrial motors, compressors, and generators, showcasing our commitment to excellence and innovation in magnet technology.

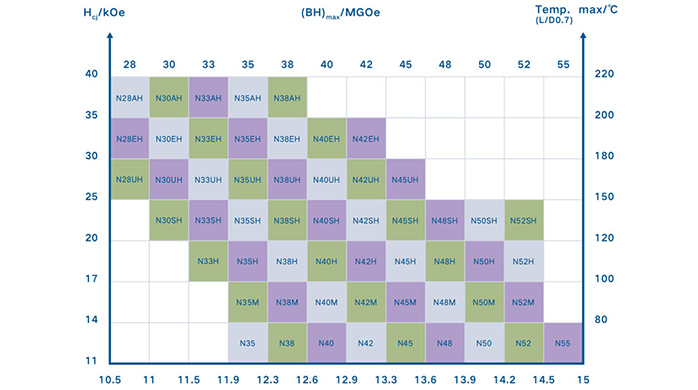

| No | Grade | Magnetic properties of N-series Magnet | Max Working Temp Tw(℃) | |||
| Remanence, Br mT or kGs | Coercivity, Hcb kA/m or kOe | Intrinsic Coercivity, Hcj kA/m or kOe | Maximium Energy Product (BH)max kJ/m³ or kOe | |||
| 1 | N52SH | 1430-1450 (14.3-14.5) | NA | ≥1592 (≥20) | 406-430 (51-54) | 150 |
| 2 | N50SH | 1400-1450 (14.0-14.5) | ≥1035（≥13.0） | ≥1592 (≥20) | 382-406 (48-51) | 150 |
| 3 | N48SH | 1370-1430 (13.7-14.3) | ≥1003（≥12.6） | ≥1592 (≥20) | 366-390 (46-49) | 150 |
| 4 | N45SH | 1330-1370 (13.3-13.7) | ≥995（≥12.5） | ≥1592 (≥20) | 342-366 (43-46) | 150 |
| 5 | N42SH | 1280-1340 (12.8-13.4) | ≥963（≥12.1） | ≥1592 (≥20) | 318-342 (40-43) | 150 |
| 6 | N40SH | 1260-1310 (12.6-13.1) | ≥947（≥11.9） | ≥1592 (≥20) | 302-326 (38-41) | 150 |
| 7 | N38SH | 1220-1290 (12.2-12.9) | ≥931（≥11.7） | ≥1592 (≥20) | 287-310 (36-39) | 150 |
| 8 | N35SH | 1170-1240 (11.7-12.4) | ≥875（≥11.0） | ≥1592 (≥20) | 263-287 (33-36) | 150 |
| 9 | N33SH | 1130-1170 (11.3-11.7) | ≥844（≥10.6） | ≥1592 (≥20) | 247-271 (31-34) | 150 |
| 10 | N30SH | 1080-1130 (10.8-11.3) | ≥804（≥10.1） | ≥1592 (≥20) | 223-247 (28-31) | 150 |
| No | Grade | Magnetic properties of N-series Magnet | Max Working Temp Tw(℃) | |||
| Remanence, Br mT or kGs | Coercivity, Hcb kA/m or kOe | Intrinsic Coercivity, Hcj kA/m or kOe | Maximium Energy Product (BH)max kJ/m³ or kOe | |||
| 1 | N45UH | 1310-1360 (13.1-13.6) | ≥971 (≥12.2) | ≥1990 (≥25) | 342-366 (43-46) | 180 |
| 2 | N42UH | 1280-1340 (12.8-13.4) | ≥955 (≥12.0) | ≥1990 (≥25) | 318-342 (40-43) | 180 |
| 3 | N40UH | 1260-1310 (12.6-13.1) | ≥939 (≥11.8) | ≥1990 (≥25) | 302-326 (38-41) | 180 |
| 4 | N38UH | 1220-1290 (12.2-12.9) | ≥915 (≥11.5) | ≥1990 (≥25) | 287-310 (36-39) | 180 |
| 5 | N35UH | 1170-1240 (11.7-12.4) | ≥875 (≥11.0) | ≥1990 (≥25) | 263-287 (33-36) | 180 |
| 6 | N33UH | 1140-1210 (11.4-12.1) | ≥844 (≥10.6) | ≥1990 (≥25) | 247-271 (31-34) | 180 |
| 7 | N30UH | 1080-1130 (10.8-11.3) | ≥835 (≥10.5) | ≥1990 (≥25) | 223-247 (28-31) | 180 |
| 8 | N28UH | 1050-1080 (10.5-10.8) | 2764 (≥96) | ≥1990 (≥25) | 207-239 (26-30) | 180 |
| No | Grade | Magnetic properties of N-series Magnet | Max Working Temp Tw(℃) | |||
| Remanence, Br mT or kGs | Coercivity, Hcb kA/m or kOe | Intrinsic Coercivity, Hcj kA/m or kOe | Maximium Energy Product (BH)max kJ/m³ or kOe | |||
| 1 | N42EH | 1280-1320 (12.8-13.2) | ≥955 (≥12.0) | ≥2388 (≥30) | 318-342 (40-43) | 200 |
| 2 | N40EH | 1240-1310 (12.4-13.1) | ≥939 (≥11.8) | ≥2388 (≥30) | 302-326 (38-41) | 200 |
| 3 | N38EH | 1220-1270 (12.2-12.7) | ≥915 (≥11.5) | ≥2388 (≥30) | 287-310 (36-39) | 200 |
| 4 | N35EH | 1170-1240 (11.7-12.4) | ≥876 (≥11.0) | ≥2388 (≥30) | 263-287 (33-36) | 200 |
| 5 | N33EH | 1140-1210 (11.4-12.1) | ≥859 (≥10.8) | ≥2388 (≥30) | 247-271 (31-34) | 200 |
| 6 | N30EH | 1080-1150 (10.8-11.5) | ≥812 (≥10.2) | ≥2388 (≥30) | 223-247 (28-31) | 200 |
| 7 | N28EH | 1040-1090 (10.4-10.9) | ≥780 (≥98) | ≥2388 (≥30) | 207-231 (26-29) | 200 |
| No | Grade | Magnetic properties of N-series Magnet | Max Working Temp Tw(℃) | |||
| Remanence, Br mT or kGs | Coercivity, Hcb kA/m or kOe | Intrinsic Coercivity, Hcj kA/m or kOe | Maximium Energy Product (BH)max kJ/m³ or kOe | |||
| 1 | N38AH | 1220-1250 (12.2-12.5) | ≥907 (≥11.4) | ≥2786 (≥35) | 287-310 (36-39) | 240 |
| 2 | N35AH | 1160-1230 (11.6-12.3) | ≥867 (≥10.9) | ≥2786 (≥35) | 263-287 (33-36) | 240 |
| 3 | N33AH | 1140-1210 (11.4-12.1) | ≥851 (≥10.7) | ≥2786 (≥35) | 247-271 (31-34) | 240 |
| 4 | N30AH | 1080-1150 (10.8-11.5) | ≥812 (≥10.2) | ≥2786 (≥35) | 223-247 (28-31) | 240 |
| Coating Type | Color | Thickness/um | SST/h | PCT/h | Working Temp/℃ | Performance features |
| Blue Zn | Blue/White | 5-10 | ≥48 | NA | <160 | Medium corrosion resistance performance |
| Color Zn | Multiple colors | 5-10 | ≥72 | NA | <160 | Medium corrosion resistance performance |
| NICUNI | Silver white | 10-30 | ≥72 | ≥96 | <200 | High corrosion resistance, thermal resistance and moisture resistance |
| PVD Aluminium | Silver white | 5-25 | ≥96 | ≥240 | <390 | High corrosion resistance and adhesiveness |
| Phosphate | NA | NA | NA | NA | <250 | Low cost, low corrosion resistance performance |
| Epoxy | Black/Grey | 10-30 | ≥480 | ≥96 | <180 | High corrosion resistance and insulation performance |
| Multi-layer coating | NA | NA | ≥1000 | ≥480 | NA | Excellent corrosion resistance performance |

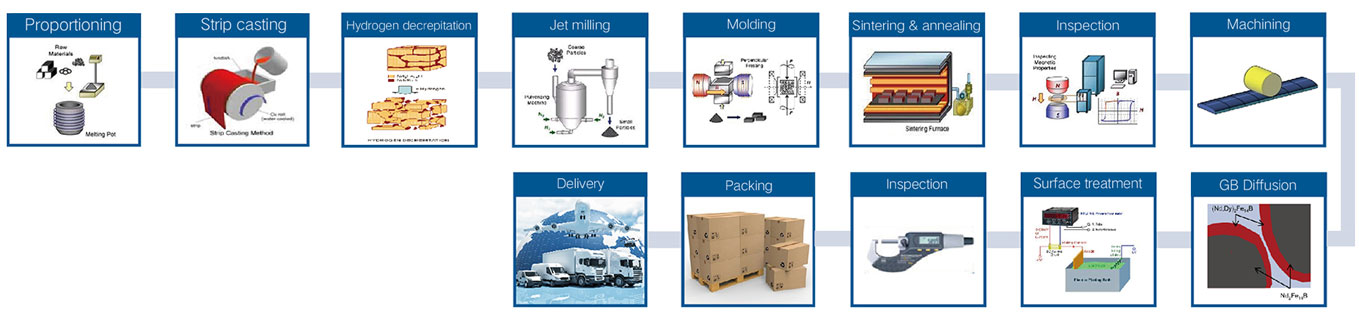

High Grade Magnet (SH/UH/EH/AH Series) Production Process
-
01Proportioning
-
02Strip casting
-
03Hydrogen decrepitation
-
04Jet milling
-
05Molding
-
06Sintering & annealing
-
07Inspection
-
08Machining
-
09GB Diffusion
-
10Surface treatment
-
11Inspection
-
12Packing
-
13Delivery

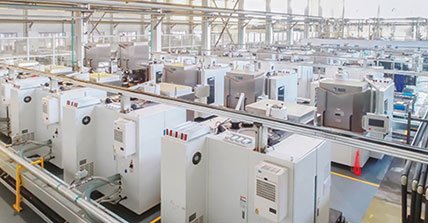

High Grade Magnet (SH/UH/EH/AH Series) Production Equipments
-

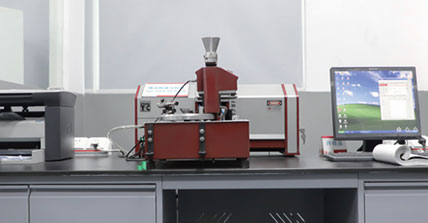

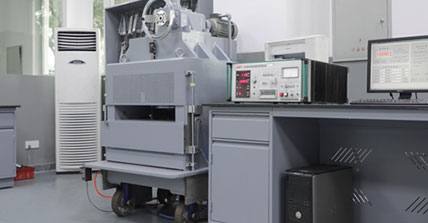

- Amt 4a Magnetic Property Measurement Equipment
-

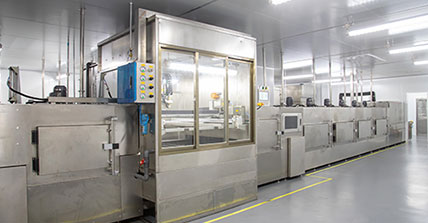

- Automatic Spraying Coating Line
-

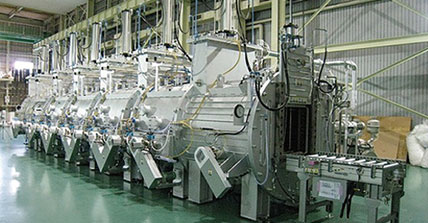

- Continuous Sintering Stove
-

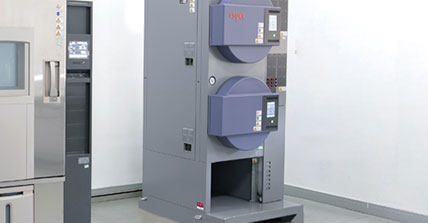

- Ehs 222md Hast Japan
-
- Helos Bfs Laser Particle Size Measurement Equipment Germany
-

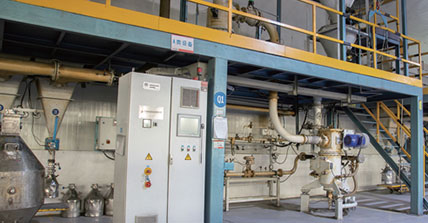

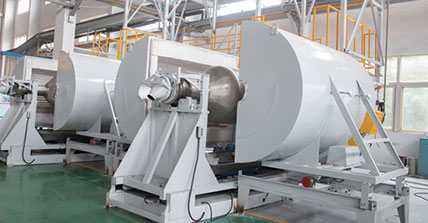

- Hydrogen Decrepitation Furnace
-
- Jet Milling
-
- Multiple Wire Cutting
-

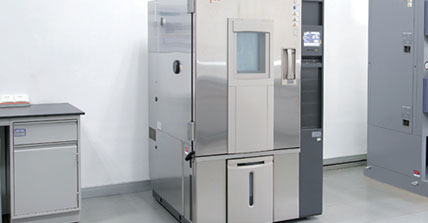

- Psl 2j High Low Temperature Environment Testing Equpment Japan
-

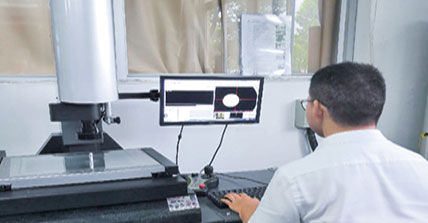

- Sp3020 Automatic Image Measuring Apparatus
-

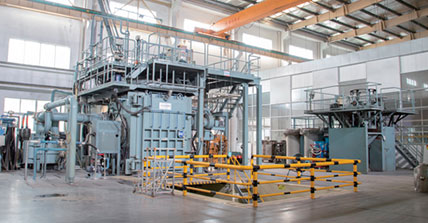

- Strip Casting Furnace
-

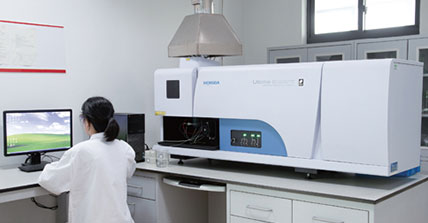

- Uitima Expert Plasma Spectrometer France
